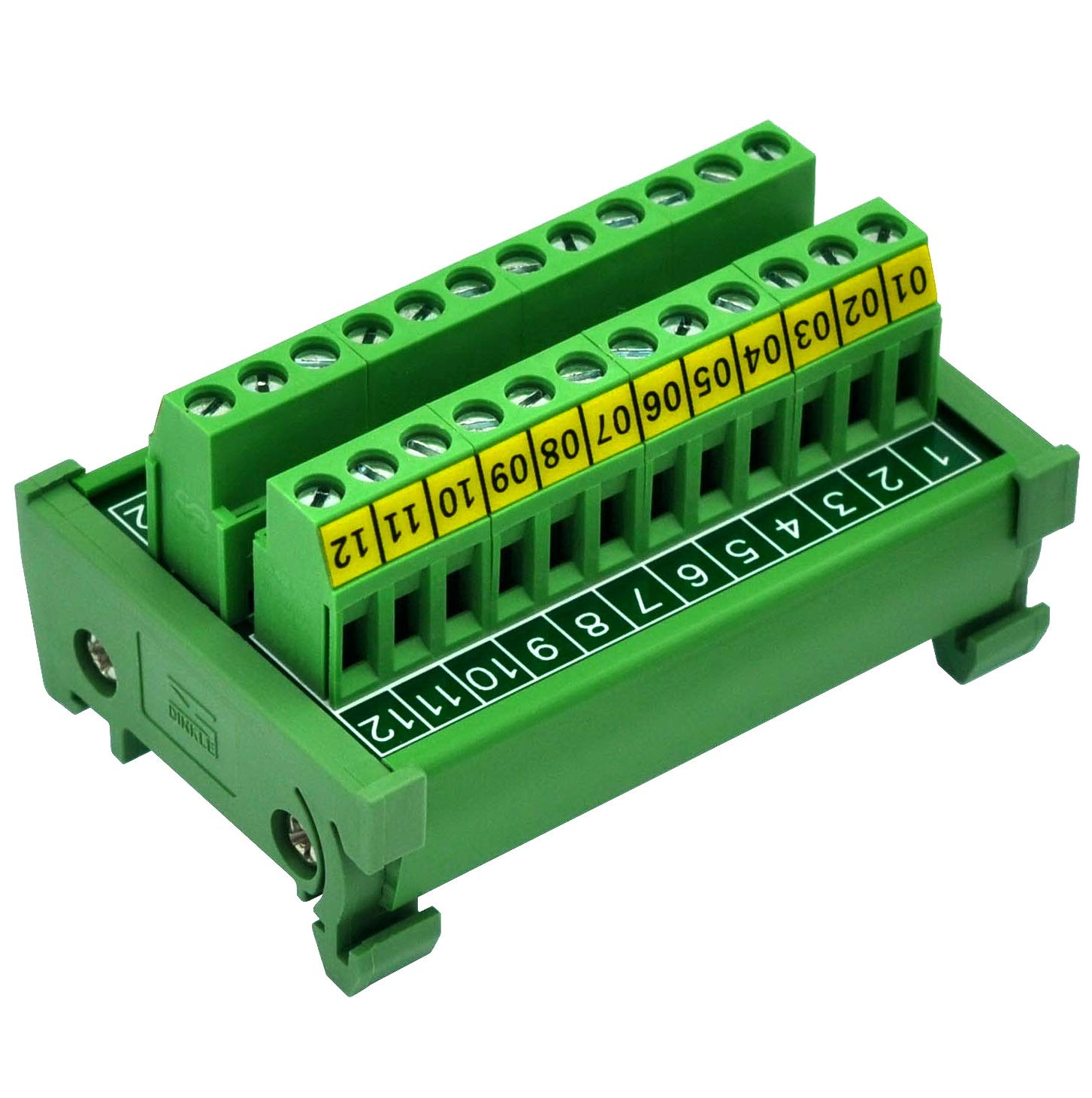

DIN Rail Mount 24A/400V 12 Position Screw Terminal Block Distribution Module
$15.90
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by qualifsitegdp.gdp.digital
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$15.90
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by qualifsitegdp.gdp.digital
Free 30-day returns Details
Product details
| Management number | 239542649 | Release Date | 2026/07/14 | List Price | $6.36 | Model Number | 239542649 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DIN Rail Mount 24A/400V 12 Position Screw Terminal Block Distribution Module.
- Terminal Block: Pitch 5.0mm/0.197", Strip length 7mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
- Wire range 26AWG ~ 12AWG / 2.5mm square. Rated voltage 400V, rated current 24Amp(per position).
- High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.

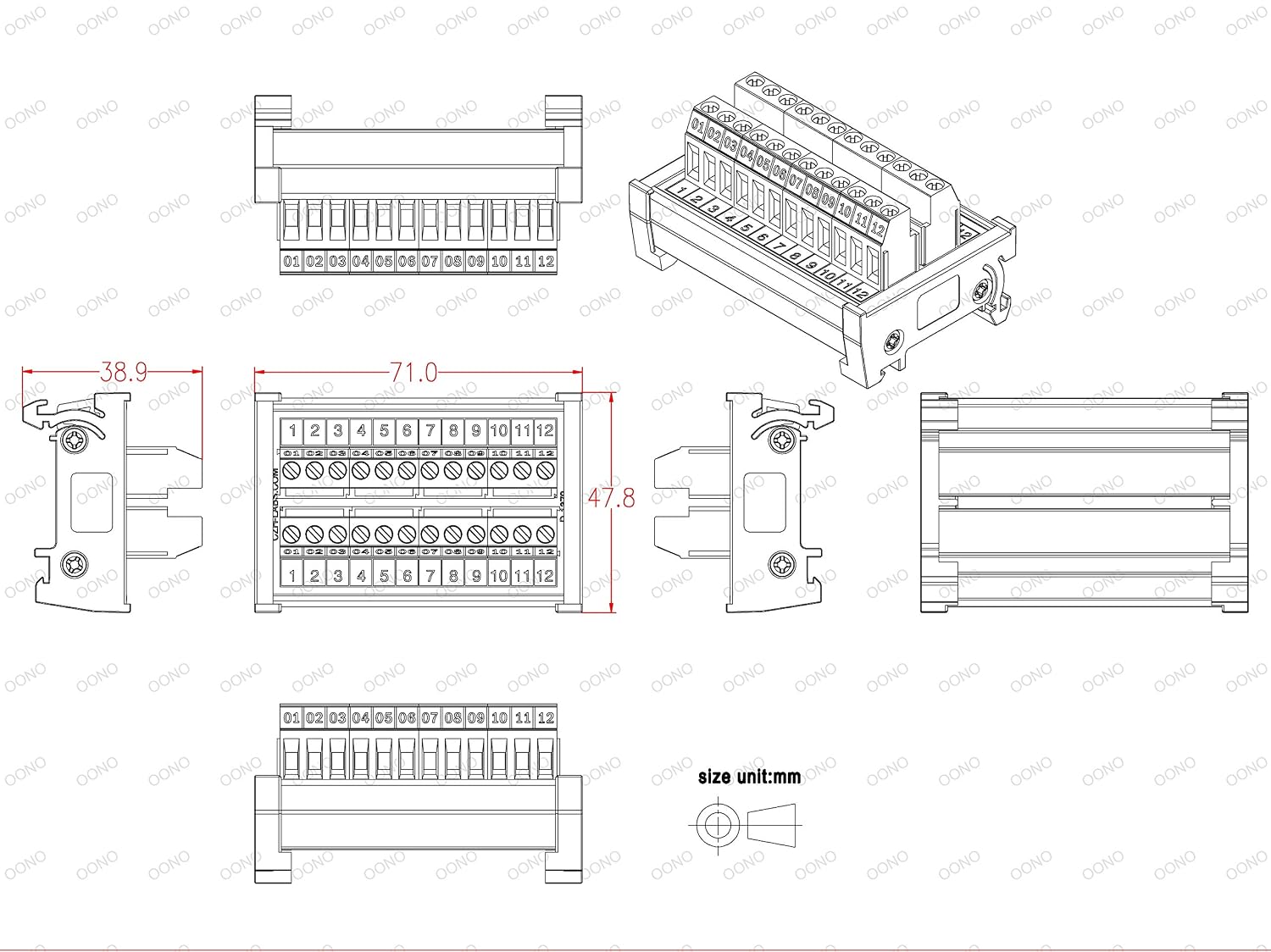

- External dimensions: L71mm x W47.8mm x H33.0mm / 2.79" x 1.89" x 1.30"
| ASIN | B08PSRNQGQ |
|---|---|
| Gauge | 26.0 |
| Model | D-1372T |
| Pitch | 5 Millimeters |
| Voltage | 400 Volts |
| Brand Name | OONO |
| Part Number | D-1372T |
| Manufacturer | CZH-LABS |
| Material Type | Brass, Steel |
| Mounting Type | din_rail |
| Connector Type | Screw |
| Current Rating | 24 Amps |
| Number Of Poles | 12 |
| Centerline Length | 71 Millimeters |
| Number Of Contacts | 12 |
| Number of Positions | 12 |
| Item Dimensions W x H | 1.89"W x 1.3"H |
